  • ISCAR DCNT0807-165-100A-7/8UNF 0.787 Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

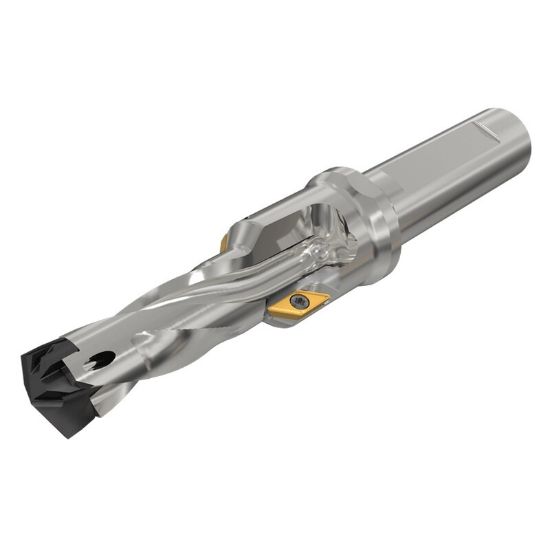

Picture of ISCAR DCNT0807-165-100A-7/8UNF 0.787 Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

ISCAR DCNT0807-165-100A-7/8UNF 0.787 Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

ISO: DCNT0807-165-100A-7/8UNF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3203911
Delivery date: 3-5 days
$566.40

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling, Pre-Thread Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Cut Dia Min 0.7874 20.00MM
Cutter Dia 0.7874 20.00MM
Overall Len 3.1060 78.89MM
Flutes/Inserts 2
Flute Length 1.6500 41.91MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Second Pocket AOMT 06
Cut Dia Max 0.8230 20.90MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
