  • ISCAR DCNS 0531-159-055B-3D 0.531" Indexable Head Drill s without a Flange and One Flat Shank, Drill ing Depth 3xD, Suitable for Chamfer ing Holders

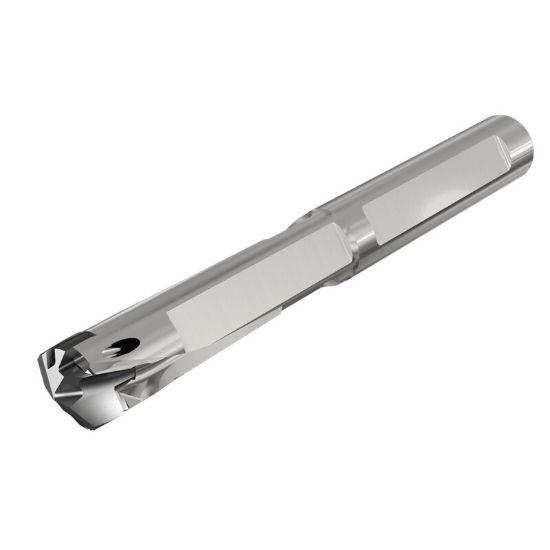

Picture of ISCAR DCNS 0531-159-055B-3D 0.531" Indexable Head Drill s without a Flange and One Flat Shank, Drill ing Depth 3xD, Suitable for Chamfer ing Holders

ISCAR DCNS 0531-159-055B-3D 0.531" Indexable Head Drill s without a Flange and One Flat Shank, Drill ing Depth 3xD, Suitable for Chamfer ing Holders

ISO: DCNS 0531-159-055B-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3203015
Delivery date: 3-5 days
$240.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Single Insert Drilling, Drilling
Package Size 1
Made In USA No
Dimensional Specifications
Dia Deep 3.0XD
Flute Length 1.6930 43.00MM
Overall Len 3.9410 100.10MM
Cutter Dia 0.5315 13.50MM
Tool Material Steel
Cut Dia Max 0.5470 13.89MM
Machine Side Connection Size 0.5512 14.00MM
Flutes/Inserts 2
Cut Dia Min 0.5315 13.50MM
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.5512 14.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
