  • ISCAR DCNS 0354-106-035B-3D 0.354" Indexable Head Drill s without a Flange and One Flat Shank, Drill ing Depth 3xD, Suitable for Chamfer ing Holders

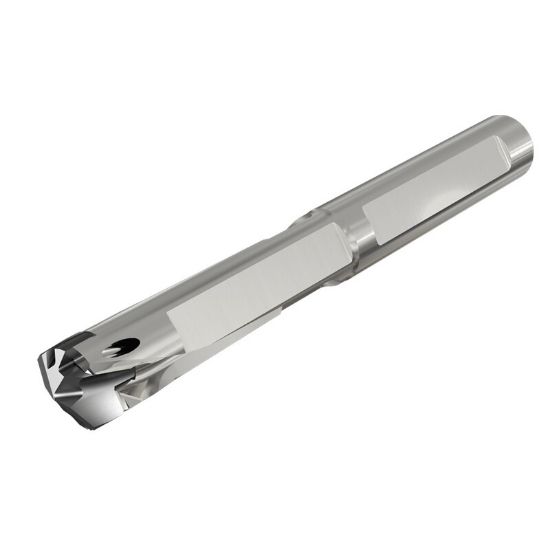

Picture of ISCAR DCNS 0354-106-035B-3D 0.354" Indexable Head Drill s without a Flange and One Flat Shank, Drill ing Depth 3xD, Suitable for Chamfer ing Holders

ISCAR DCNS 0354-106-035B-3D 0.354" Indexable Head Drill s without a Flange and One Flat Shank, Drill ing Depth 3xD, Suitable for Chamfer ing Holders

ISO: DCNS 0354-106-035B-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3203006
Delivery date: 3-5 days
$191.04

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Cut Dia Max 0.3700 9.40MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.3543 9.00MM
Overall Len 2.9450 74.80MM
Flute Length 1.1260 28.60MM
Cutter Dia 0.3543 9.00MM
Tool Material Steel
Dia Deep 3.0XD
Cut Dia Min 0.3543 9.00MM
Shank/Pilot Dia 0.3543 9.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
