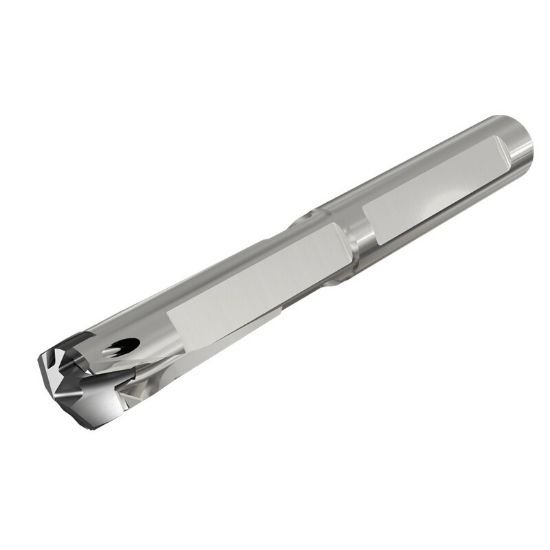

Picture of Iscar DCNS 0354-106-035B-3D 0.354" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders

Iscar DCNS 0354-106-035B-3D 0.354" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders

Part Number: ISC3203006 ISO: DCNS 0354-106-035B-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111784
Vendor: Sussex Tool and Supply
$198.37
ISCAR 3203006 0.354" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.3543 9.00MM
Overall Length 2.9450 74.80MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3543 9.00MM
Flutes/Inserts 2
Tool Dia 0.3543 9.00MM
Type Of Tool Drill
Flute Length 1.1260 28.60MM
Cut Dia Min 0.3543 9.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3700 9.40MM
