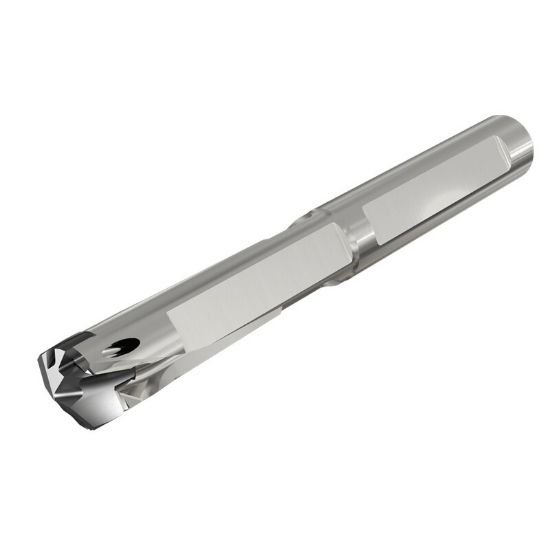

Picture of Iscar DCNS 0335-100-035B-3D 0.335" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders

Iscar DCNS 0335-100-035B-3D 0.335" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders

Part Number: ISC3203005 ISO: DCNS 0335-100-035B-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111783
Vendor: Sussex Tool and Supply
$198.37
ISCAR 3203005 0.335" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.3543 9.00MM
Overall Length 2.8700 72.90MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3543 9.00MM
Flutes/Inserts 2
Tool Dia 0.3346 8.50MM
Type Of Tool Drill
Flute Length 1.0670 27.10MM
Cut Dia Min 0.3346 8.50MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3500 8.89MM
