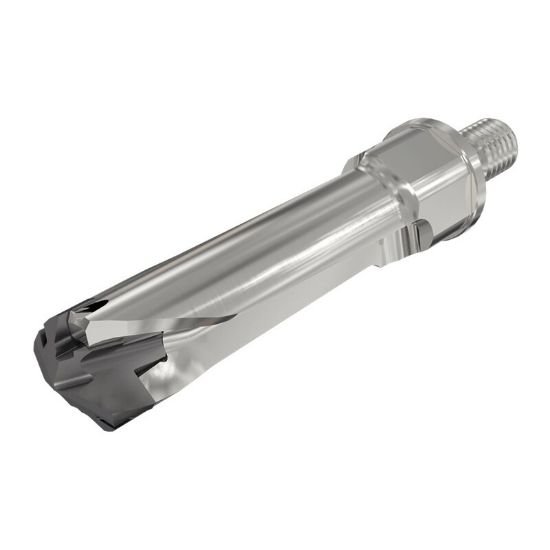

Picture of Iscar DCNM 065-020-M12-3D 0.256" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Iscar DCNM 065-020-M12-3D 0.256" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Part Number: ISC3352556 ISO: DCNM 065-020-M12-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112390
Vendor: Sussex Tool and Supply
$241.93
ISCAR 3352556 0.256" Modular SUMOCHAM Drill with FLEXFIT Connection for Multi-Spindle and Swiss-type Machines Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M12
Overall Length 2.6100 66.29MM
Coolant Thru Thru Coolant
Flutes/Inserts 1
Tool Dia 0.2559 6.50MM
Type Of Tool Drill
Flute Length 0.9570 24.31MM
Cut Dia Min 0.2559 6.50MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.2720 6.91MM
