  • ISCAR DCN 1260-1512-125R-12D 1.26" Indexable Head Drill s with Coolant Holes and a Cylindrical Shank, Drill ing Depth 12xD

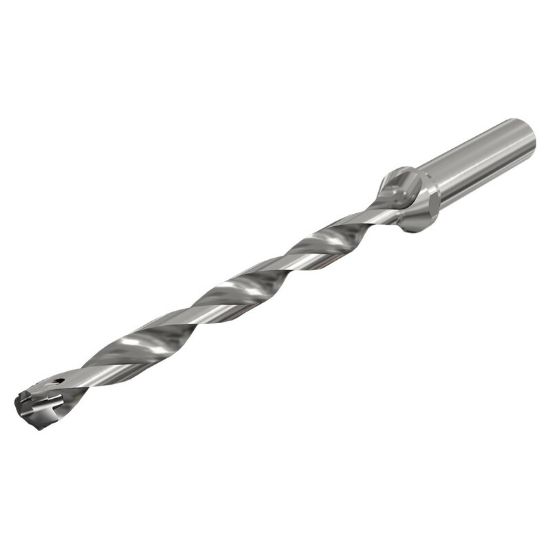

Picture of ISCAR DCN 1260-1512-125R-12D 1.26" Indexable Head Drill s with Coolant Holes and a Cylindrical Shank, Drill ing Depth 12xD

ISCAR DCN 1260-1512-125R-12D 1.26" Indexable Head Drill s with Coolant Holes and a Cylindrical Shank, Drill ing Depth 12xD

ISO: DCN 1260-1512-125R-12D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3260252
Delivery date: 3-5 days
$1,104.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 1.2598 32.00MM
Cut Dia Max 1.2960 32.92MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Flute Length 15.3500 389.89MM
Machine Side Connection Type Cylindrical
Overall Len 20.3300 516.38MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Dia Deep 12.0XD
Cut Dia Min 1.2598 32.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
