  • ISCAR DCN 1220-610-125A-5D 1.22" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

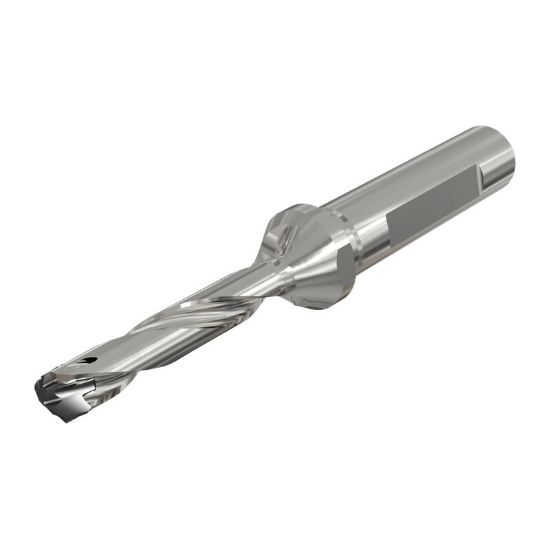

Picture of ISCAR DCN 1220-610-125A-5D 1.22" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISCAR DCN 1220-610-125A-5D 1.22" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISO: DCN 1220-610-125A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3260243
Delivery date: 3-5 days
$810.24

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 10.3900 263.91MM
Flute Length 6.3200 160.53MM
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Cut Dia Min 1.2205 31.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2205 31.00MM
Cut Dia Max 1.2559 31.90MM
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
