  • ISCAR DCN 1142-571-150A-5D 1.142" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

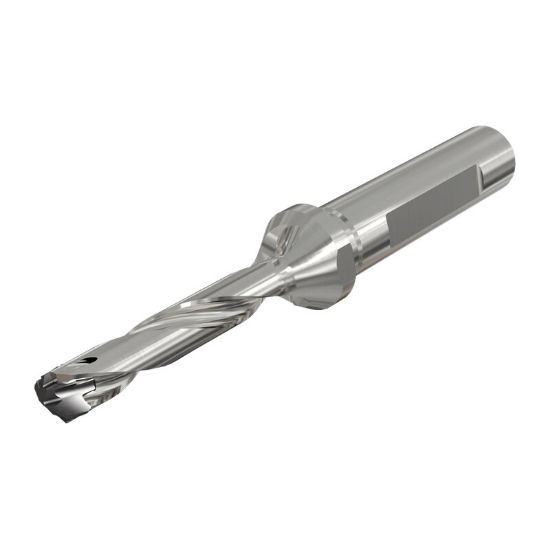

Picture of ISCAR DCN 1142-571-150A-5D 1.142" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISCAR DCN 1142-571-150A-5D 1.142" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISO: DCN 1142-571-150A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201748
Delivery date: 3-5 days
$783.36

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Single Insert Drilling, Drilling
Package Size 1
Shipping State Texas
Dimensional Specifications
Cutter Dia 1.1417 29.00MM
Flutes/Inserts 2
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flute Length 5.9200 150.37MM
Cut Dia Max 1.1770 29.90MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 5.0XD
Cut Dia Min 1.1417 29.00MM
Tool Material Steel
Overall Len 10.1900 258.83MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
