  • ISCAR DCN 1063-319-125R-3D 1.063" Indexable Head Drill s with Coolant Holes and a Cylindrical Shank, Drill ing Depth 3xD

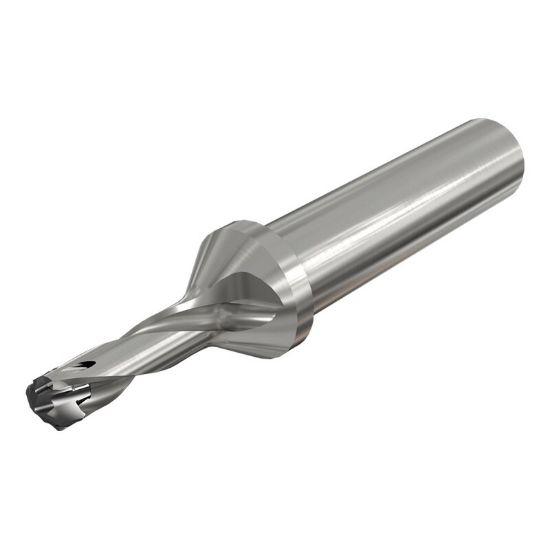

Picture of ISCAR DCN 1063-319-125R-3D 1.063" Indexable Head Drill s with Coolant Holes and a Cylindrical Shank, Drill ing Depth 3xD

ISCAR DCN 1063-319-125R-3D 1.063" Indexable Head Drill s with Coolant Holes and a Cylindrical Shank, Drill ing Depth 3xD

ISO: DCN 1063-319-125R-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3203128
Delivery date: 3-5 days
$559.68

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Drilling, Single Insert Drilling
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cut Dia Min 1.0630 27.00MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 7.2300 183.64MM
Cut Dia Max 1.0980 27.89MM
Dia Deep 3.0XD
Flute Length 3.3800 85.85MM
Cutter Dia 1.0630 27.00MM
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
