  • ISCAR DCN 0906-453-125A-5D 0.906" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

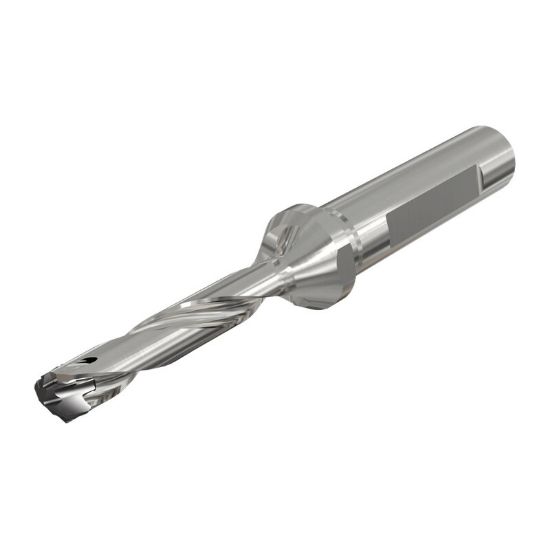

Picture of ISCAR DCN 0906-453-125A-5D 0.906" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISCAR DCN 0906-453-125A-5D 0.906" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISO: DCN 0906-453-125A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201742
Delivery date: 3-5 days
$613.44

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Cut Dia Max 0.9410 23.90MM
Overall Len 8.3200 211.33MM
Cut Dia Min 0.9062 23.02MM - 29/32
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 0.9063 23.02MM - 29/32
Tool Material Steel
Flute Length 4.7000 119.38MM
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
