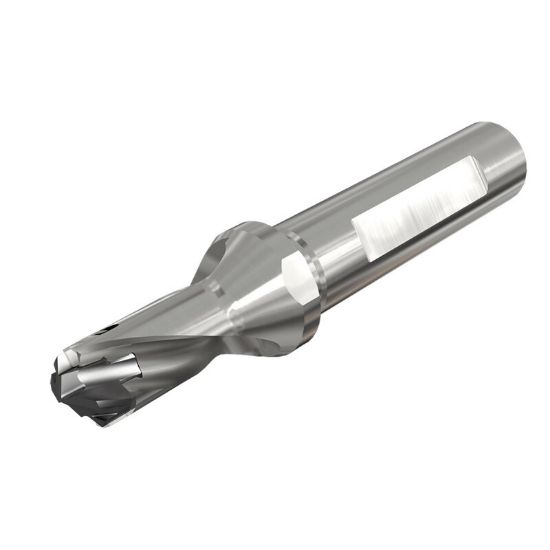

Picture of ISCAR DCN 0787-118-100A-1.5D 0.787" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 1.5xD

ISCAR DCN 0787-118-100A-1.5D 0.787" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 1.5xD

ISO: DCN 0787-118-100A-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3202614
Delivery date: 3-5 days
$345.60

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Package Size 1
Shipping State Texas
Made In USA No
Dimensional Specifications
Cut Dia Min 0.7874 20.00MM
Tool Material Steel
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Dia Deep 1.5XD
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Max 0.8230 20.90MM
Flute Length 1.3200 33.53MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 4.6300 117.60MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
