  • ISCAR DCN 0709-850-100R-12D 0.709" Indexable Head Drill s with Coolant Holes and a Cylindrical Shank, Drill ing Depth 12xD

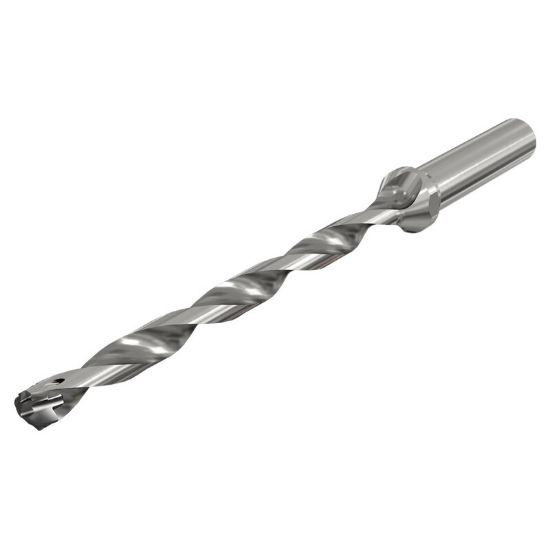

Picture of ISCAR DCN 0709-850-100R-12D 0.709" Indexable Head Drill s with Coolant Holes and a Cylindrical Shank, Drill ing Depth 12xD

ISCAR DCN 0709-850-100R-12D 0.709" Indexable Head Drill s with Coolant Holes and a Cylindrical Shank, Drill ing Depth 12xD

ISO: DCN 0709-850-100R-12D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3202834
Delivery date: 3-5 days
$570.24

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Package Size 1
Shipping State Texas
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 2
Flute Length 8.6300 219.20MM
Overall Len 11.8300 300.48MM
Cutter Dia 0.7087 18.00MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Max 0.7440 18.90MM
Cut Dia Min 0.7087 18.00MM
Dia Deep 12.0XD
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
