  • ISCAR DCN 0512-256-063R-5D 0.512" Indexable Head Drill s with Coolant Holes and Cylindrical Shanks, Drill ing Depth 5xD

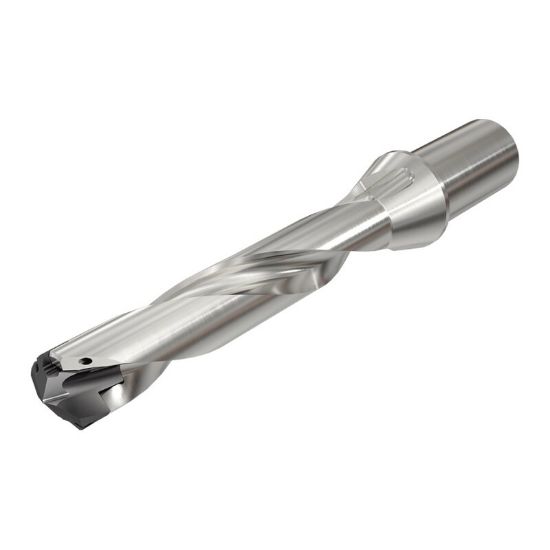

Picture of ISCAR DCN 0512-256-063R-5D 0.512" Indexable Head Drill s with Coolant Holes and Cylindrical Shanks, Drill ing Depth 5xD

ISCAR DCN 0512-256-063R-5D 0.512" Indexable Head Drill s with Coolant Holes and Cylindrical Shanks, Drill ing Depth 5xD

ISO: DCN 0512-256-063R-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3202632
Delivery date: 3-5 days
$298.56

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Application Drilling, Single Insert Drilling
Made In USA No
Dimensional Specifications
Flute Length 2.6500 67.31MM
Cut Dia Max 0.5280 13.41MM
Machine Side Connection Type Cylindrical
Cut Dia Min 0.5118 13.00MM
Machine Side Connection Size 0.6250 15.88MM
Flutes/Inserts 2
Cutter Dia 0.5118 13.00MM
Dia Deep 5.0XD
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 5.1400 130.56MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
