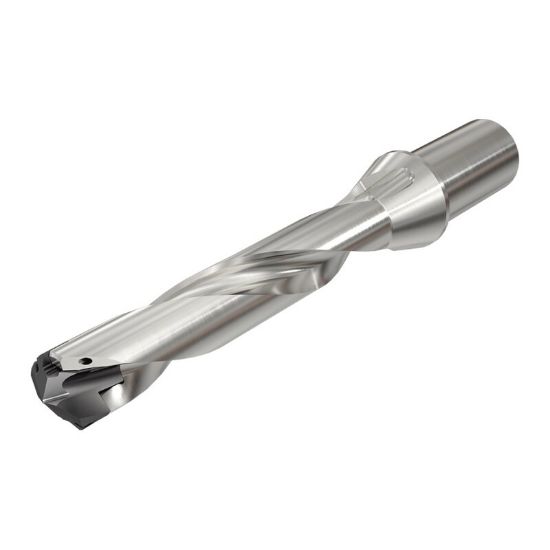

ISCAR DCN 0433-216-063R-5D 0.433" Indexable Head Drill s with Coolant Holes and Cylindrical Shanks, Drill ing Depth 5xD

ISO: DCN 0433-216-063R-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3202626
Delivery date: 3-5 days
$277.44

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Package Size 1
Shipping State Texas
Made In USA No
Dimensional Specifications
Cutter Dia 0.4331 11.00MM
Tool Material Steel
Cut Dia Min 0.4331 11.00MM
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Max 0.4490 11.40MM
Machine Side Connection Type Cylindrical
Dia Deep 5.0XD
Flute Length 2.2400 56.90MM
Overall Len 4.7100 119.63MM
Flutes/Inserts 2
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
