  • ISCAR DCN 0315-252-050A-8D 0.315" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 8xD

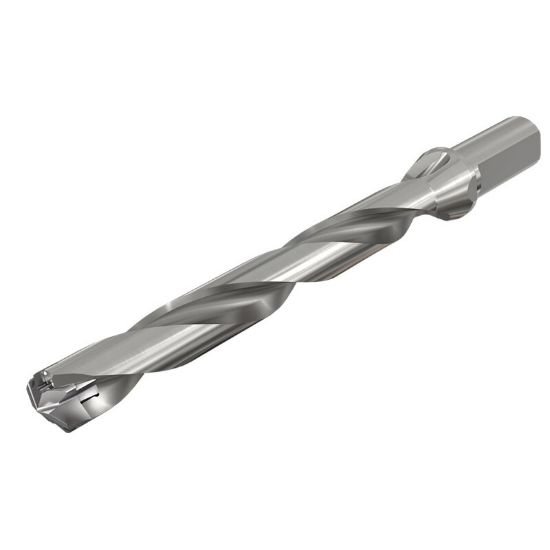

Picture of ISCAR DCN 0315-252-050A-8D 0.315" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 8xD

ISCAR DCN 0315-252-050A-8D 0.315" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 8xD

ISO: DCN 0315-252-050A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3202476
Delivery date: 3-5 days
$328.32

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling, Single Insert Drilling
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 0.3150 8.00MM
Cut Dia Max 0.3310 8.41MM
Flutes/Inserts 2
Dia Deep 8.0XD
Flute Length 2.5800 65.53MM
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Dia Min 0.3150 8.00MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 4.9000 124.46MM
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
