  • ISCAR DCN 0295-236-050A-8D 0.295" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 8xD

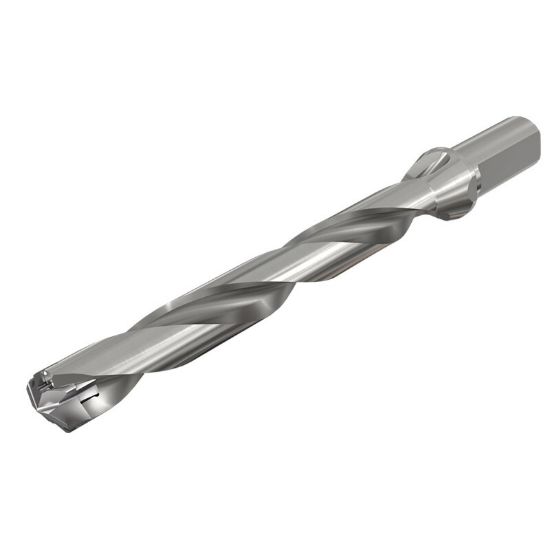

Picture of ISCAR DCN 0295-236-050A-8D 0.295" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 8xD

ISCAR DCN 0295-236-050A-8D 0.295" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 8xD

ISO: DCN 0295-236-050A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3202950
Delivery date: 3-5 days
$328.32

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Application Single Insert Drilling, Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Flute Length 2.4100 61.21MM
Cutter Dia 0.2953 7.50MM
Cut Dia Min 0.2953 7.50MM - M
Machine Side Connection Size 0.5000 12.70MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cut Dia Max 0.3110 7.90MM
Overall Len 4.7000 119.38MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Dia Deep 8.0XD
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
