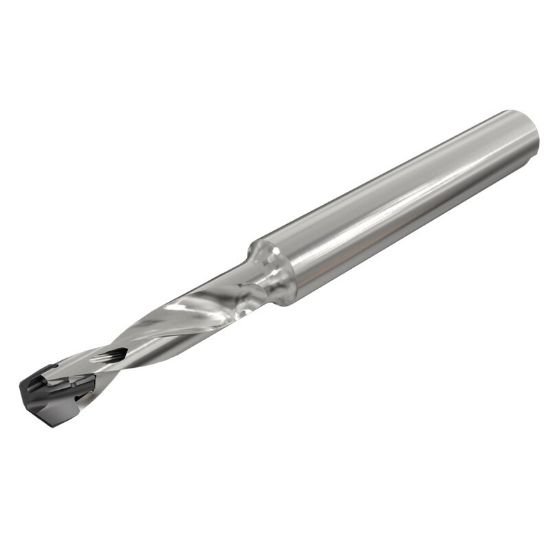

Picture of Iscar DCN 0177-055-0236C-3D 0.177" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Iscar DCN 0177-055-0236C-3D 0.177" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Part Number: ISC3346595 ISO: DCN 0177-055-0236C-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112112
Vendor: Sussex Tool and Supply
$241.93
This product has a minimum quantity of 2
ISCAR 3346595 0.177" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.3480 59.64MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1772 4.50MM
Type Of Tool Drill
Flute Length 0.5320 13.51MM
Cut Dia Min 0.1772 4.50MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.1930 4.90MM
