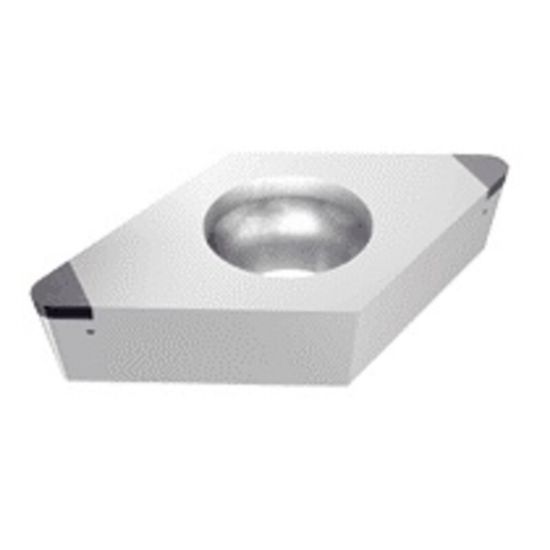

ISCAR DCMW3-2-M2 IB20H Turning Insert 55.0° CBN 0.031 Corner Radius

ANSI: DCMW3-2-M2 IB20H

ISO: DCMW11T308-M2 IB20H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6820949
Delivery date: 3-5 days
$59.01

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

55° Positive Rhombic Inserts with 2 CBN Tips for Machining Hardened Steel, Sintered Metals and High Temperature Alloys

Grade and Coating Description

A combination of coarse and fine grain PCBN, used for general and interrupted cutting of hardened steel.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application Roughing, Semi Finishing
Application Turning Insert
Made In USA No
Package Size 10
Shipping State Texas
Insert Type Positive
Grade IB20H
Dimensional Specifications
Insert Size Ic 11 "32"
Cut Rating <65HRC Steel
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
