ISCAR DCMT3-2-FPC IC520N Turning Insert 55.0° Cermet TiCN + TiN 0.031 Corner Radius

ANSI: DCMT3-2-FPC IC520N

ISO: DCMT11T308-FPC IC520N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6170088
Delivery date: 3-5 days
$10.16

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

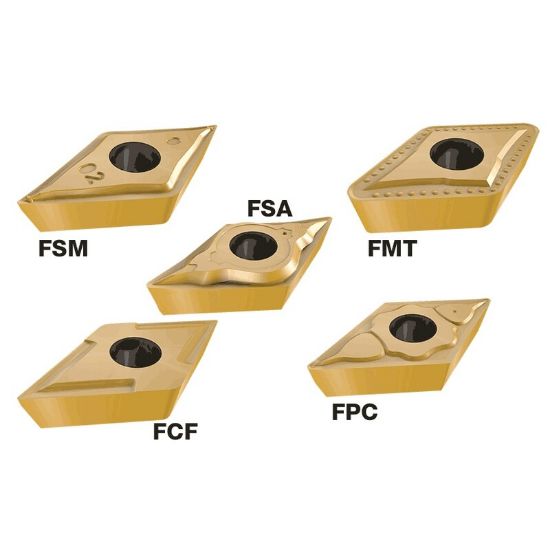

Single-Sided 55° Rhombic Cermet Grade Inserts for Semi-Finishing and Finishing Applications

Grade and Coating Description

A hard cermet grade with PVD coating. Suitable for finishing operations on steels and stainless steel at high cutting speeds and low feeds. Features excellent surface finish, very good wear resistance and prevents built-up edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 10
Insert Application Roughing, Semi Finishing
Application Turning Insert
Made In USA No
Shipping State Texas
Coating TiCN + TiN
Insert/Tool Insert
Grade IC520N
Dimensional Specifications
Insert Size Ic 11 "32"
Corner Radius 0.0310 0.79MM
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
