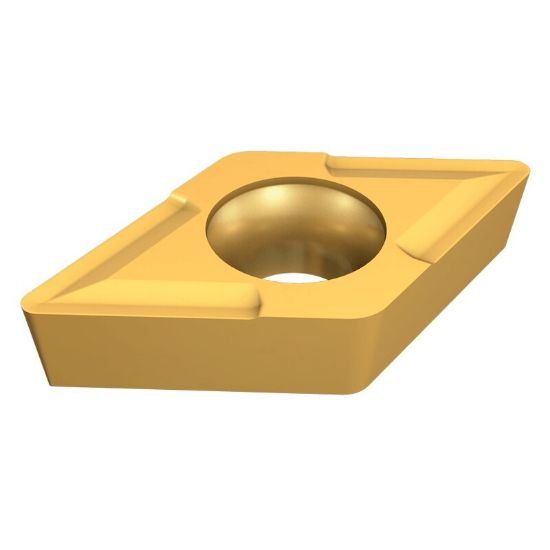

ISCAR DCMT3-0 IC30N Turning Insert 55.0° Cermet 0.008 Corner Radius

ANSI: DCMT3-0 IC30N

ISO: DCMT11T302- IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5502821
Delivery date: 3-5 days
$8.87

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

55° Rhombic Inserts with a 7° Positive Clearance for Finishing Applications

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Insert
Grade IC30N
Insert Application Finishing
Insert Type Positive
Package Size 10
Application Turning Insert
Made In USA No
Dimensional Specifications
Cut Rating <53HRC Steel, Stainless Steel
Insert Size Ic 11 "32"
Corner Radius 0.0080 0.20MM
Cutting & Machining Properties
Insert Style DC
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 55.0°
