ISCAR DCMT3-0-FCF IC520N Turning Insert 55.0° Cermet TiCN + TiN 0.008 Corner Radius

ANSI: DCMT3-0-FCF IC520N

ISO: DCMT11T302-FCF IC520N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6166990
Delivery date: 3-5 days
$10.16

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

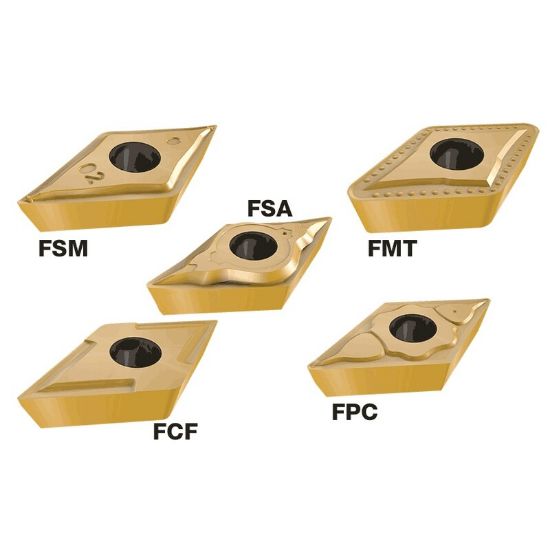

Single-Sided 55° Rhombic Cermet Grade Inserts for Semi-Finishing and Finishing Applications

Grade and Coating Description

A hard cermet grade with PVD coating. Suitable for finishing operations on steels and stainless steel at high cutting speeds and low feeds. Features excellent surface finish, very good wear resistance and prevents built-up edge.

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Package Size 10
Insert Application Finishing
Insert Type Positive
Grade IC520N
Insert/Tool Insert
Coating TiCN + TiN
Shipping State Texas
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Insert Size Ic 11 "32"
Corner Radius 0.0080 0.20MM
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
