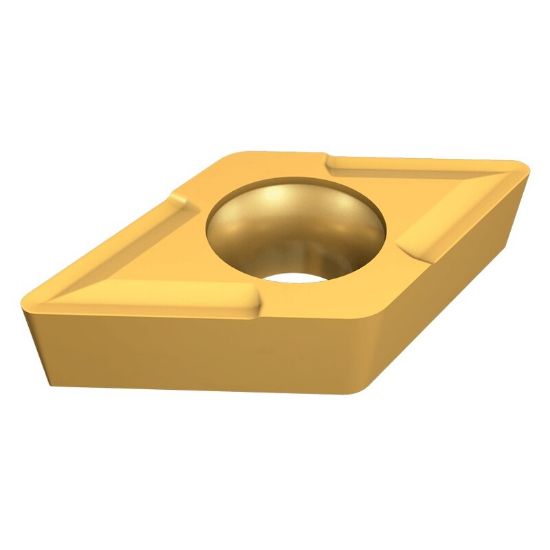

ISCAR DCMT2-1 IC30N Turning Insert 55.0° Cermet 0.016 Corner Radius

ANSI: DCMT2-1 IC30N

ISO: DCMT070204- IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5502822
Delivery date: 3-5 days
$7.27

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

55° Rhombic Inserts with a 7° Positive Clearance for Finishing Applications

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Turning Insert
Made In USA No
Package Size 10
Insert/Tool Insert
Insert Application Finishing
Insert Type Positive
Grade IC30N
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Insert Size Ic 07 "21"
Cut Rating <53HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat Cermet
