  • ISCAR DCM 0748-244-075B-3.5D 0.748" Indexable Head Drill s without a Flange and One Flat Shank, Drill ing Depth 3.5xD, Suitable for Chamfer ing Holders

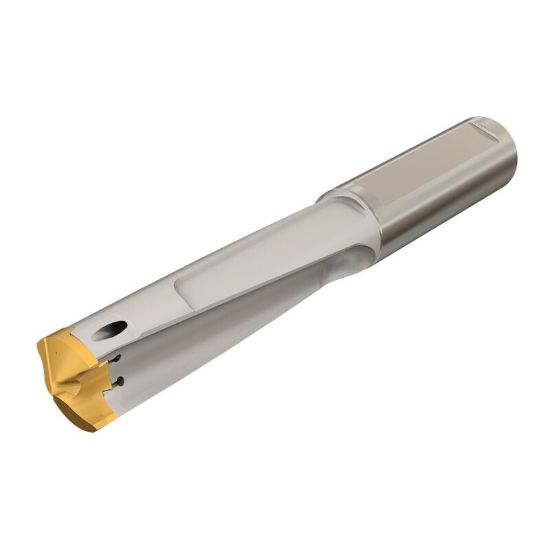

Picture of ISCAR DCM 0748-244-075B-3.5D 0.748" Indexable Head Drill s without a Flange and One Flat Shank, Drill ing Depth 3.5xD, Suitable for Chamfer ing Holders

ISCAR DCM 0748-244-075B-3.5D 0.748" Indexable Head Drill s without a Flange and One Flat Shank, Drill ing Depth 3.5xD, Suitable for Chamfer ing Holders

ISO: DCM 0748-244-075B-3.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3200987
Delivery date: 3-5 days
$300.48

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Single Insert Drilling, Drilling
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 0.7830 19.89MM
Cutter Dia 0.7480 19.00MM
Flutes/Inserts 2
Shank/Pilot Dia 0.7480 19.00MM
Cut Dia Min 0.7480 19.00MM
Flute Length 2.4610 62.51MM
Machine Side Connection Size 0.7480 19.00MM
Tool Material Steel
Overall Len 5.3460 135.79MM
Dia Deep 3.5XD
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
