  • ISCAR DCM 0709-354-100A-5D 0.709" Indexable Head Drill s with One Flat Shank, Drill ing Depth 5xD

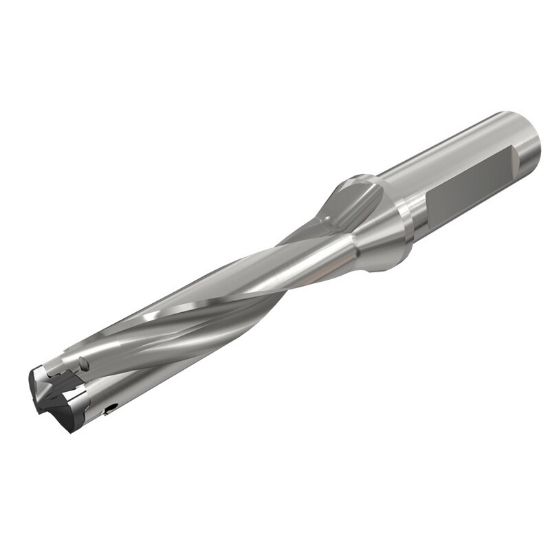

Picture of ISCAR DCM 0709-354-100A-5D 0.709" Indexable Head Drill s with One Flat Shank, Drill ing Depth 5xD

ISCAR DCM 0709-354-100A-5D 0.709" Indexable Head Drill s with One Flat Shank, Drill ing Depth 5xD

ISO: DCM 0709-354-100A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3200586
Delivery date: 3-5 days
$310.08

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling, Single Insert Drilling
Shipping State Texas
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Tool Material Steel
Overall Len 6.4700 164.34MM
Dia Deep 5.0XD
Cutter Dia 0.7087 18.00MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 0.7440 18.90MM
Flute Length 3.5400 89.92MM
Cut Dia Min 0.7087 18.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
