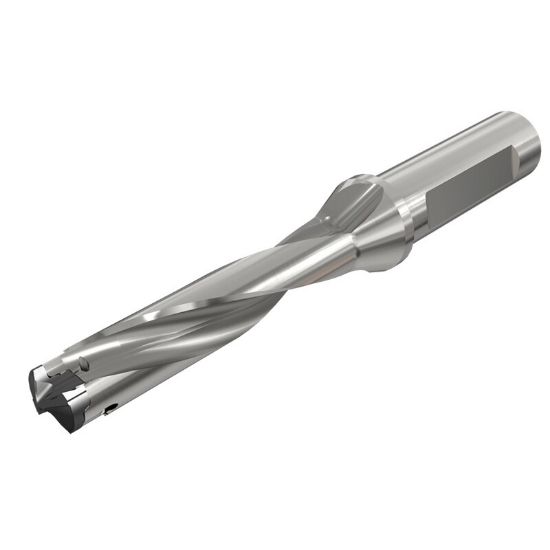

Picture of ISCAR DCM 0669-335-075A-5D 0.669" Indexable Head Drill s with One Flat Shank, Drill ing Depth 5xD

ISCAR DCM 0669-335-075A-5D 0.669" Indexable Head Drill s with One Flat Shank, Drill ing Depth 5xD

ISO: DCM 0669-335-075A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3200582
Delivery date: 3-5 days
$310.08

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Single Insert Drilling, Drilling
Package Size 1
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Min 0.6692 17.00MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.6692 17.00MM
Dia Deep 5.0XD
Flutes/Inserts 2
Flute Length 3.3500 85.09MM
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 0.7050 17.91MM
Overall Len 6.2000 157.48MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
