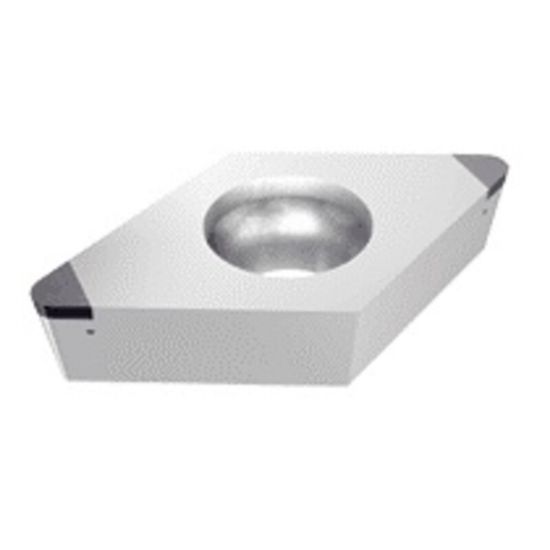

Picture of ISCAR DCGW2-1-M2 IB20HC Turning Insert 55.0° CBN TiN 0.016 Corner Radius

ISCAR DCGW2-1-M2 IB20HC Turning Insert 55.0° CBN TiN 0.016 Corner Radius

ANSI: DCGW2-1-M2 IB20HC

ISO: DCGW070204-M2 IB20HC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6805125
Delivery date: 3-5 days
$64.24

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

55° Positive Rhombic Inserts with 2 CBN Tips for Machining Hardened Steel, Sintered Metals and High Temperature Alloys

Grade and Coating Description

Coated PCBN grade for hardened steel turning. High chipping resistance & extremely tough substrate for all-round use.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Turning Insert
Made In USA No
Insert Application Finishing
Insert Type Positive
Coating TiN
Grade IB20HC
Package Size 10
Shipping State Texas
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Insert Size Ic 07 "21"
Cut Rating <65HRC Steel
Cutting & Machining Properties
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat CBN
