  • ISCAR D3N 0512-153-063A-3D 0.512" Exchangeable Head 3 Flute Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 3xD

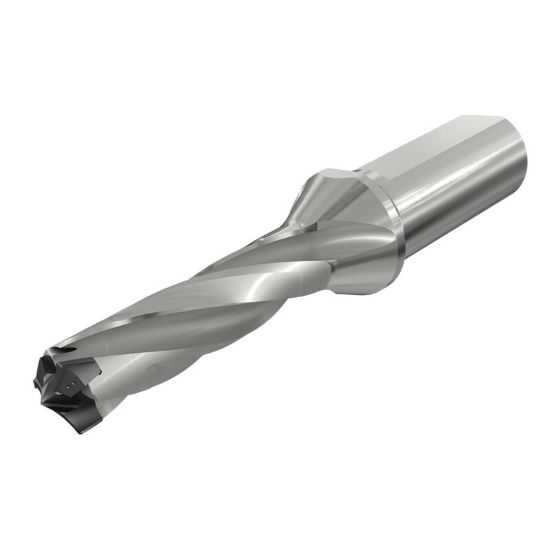

Picture of ISCAR D3N 0512-153-063A-3D 0.512" Exchangeable Head 3 Flute Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 3xD

ISCAR D3N 0512-153-063A-3D 0.512" Exchangeable Head 3 Flute Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 3xD

ISO: D3N 0512-153-063A-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3346825
Delivery date: 3-5 days
$325.44

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Application Single Insert Drilling, Drilling
Made In USA No
Dimensional Specifications
Cut Dia Min 0.5118 13.00MM
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Flute Length 1.8300 46.48MM
Cutter Dia 0.5118 13.00MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Cut Dia Max 0.5280 13.41MM
Overall Len 4.4920 114.10MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
