  • ISCAR D3N 0492-147-063R-3D 0.492" Exchangeable Head 3 Flute Drill s with Coolant Holes and Round Shank, Drill ing Depth 3xD

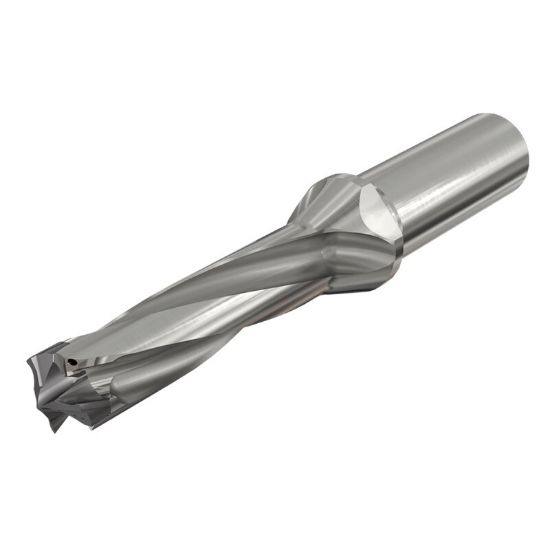

Picture of ISCAR D3N 0492-147-063R-3D 0.492" Exchangeable Head 3 Flute Drill s with Coolant Holes and Round Shank, Drill ing Depth 3xD

ISCAR D3N 0492-147-063R-3D 0.492" Exchangeable Head 3 Flute Drill s with Coolant Holes and Round Shank, Drill ing Depth 3xD

ISO: D3N 0492-147-063R-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3363037
Delivery date: 3-5 days
$288.96

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Shipping State Texas
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Cylindrical
Tool Material Steel
Flutes/Inserts 1
Cutter Dia 0.4921 12.50MM
Cut Dia Max 0.5080 12.90MM
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Min 0.4921 12.50MM
Dia Deep 3.0XD
Overall Len 4.3770 111.18MM
Flute Length 1.7500 44.45MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
