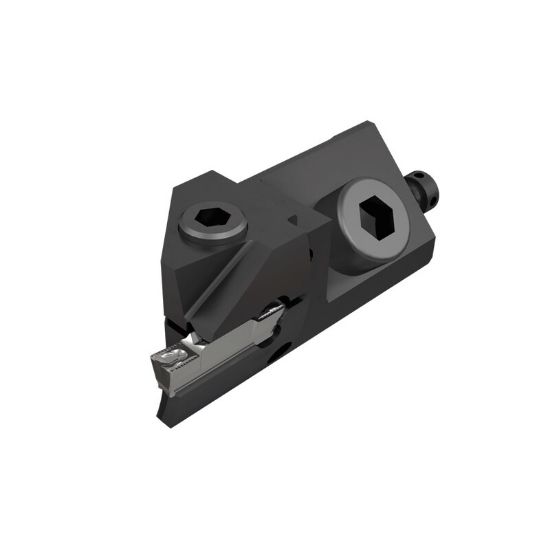

Picture of ISCAR CR HFIR-16M Face Grooving Cartridge 0.787 Tool

ISCAR CR HFIR-16M Face Grooving Cartridge 0.787 Tool

ANSI: CR HFIR-16M

ISO: CR HFIR-16M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500430
Delivery date: 3-5 days
$232.32

Important Notes

Used for shallow internal face machining to max. .197" depth of groove Inserts in .118 - .236" widths can be mounted on the cartridges Only DGN and GRIP .157 - .236" inserts can be used with the right-hand tools.

Details

Cartridges for face grooving and face turning Dmin 2.36"

Face Grooving Face Grooving & Turning Int. Face Grooving Int. Face Recessing

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Application Face Grooving
Package Size 1
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Insert Size Ic 4, 5, 3
Depth Of Cut Max 0.1970
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting Width 0.1570 3.99MM
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 2.6380 67.01MM
Machine Side Connection Size 0.7874 20.00MM
Tool Width 0.6300
Cutting & Machining Properties
Inter/Extern External
Insert Style DG,GR,HF
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
