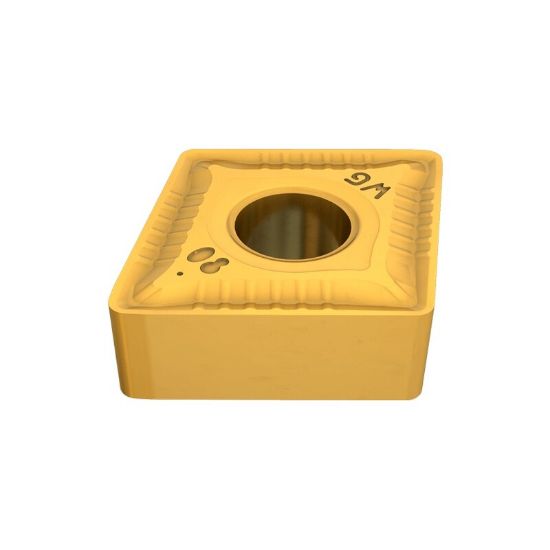

ISCAR CNMG432-WG IC520N Turning Insert 80.0° Cermet TiCN + TiN 0.031 Corner Radius

ANSI: CNMG432-WG IC520N

ISO: CNMG120408-WG IC520N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5505277
Delivery date: 3-5 days
$8.51

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Double-Sided 80° Rhombic Wiper Inserts for High Feed Turning and High Surface Finish

Grade and Coating Description

A hard cermet grade with PVD coating. Suitable for finishing operations on steels and stainless steel at high cutting speeds and low feeds. Features excellent surface finish, very good wear resistance and prevents built-up edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 10
Coating TiCN + TiN
Insert Type Negative
Application Turning Insert
Made In USA No
Insert/Tool Insert
Grade IC520N
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating <40HRC Steel, Stainless Steel
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat Cermet
