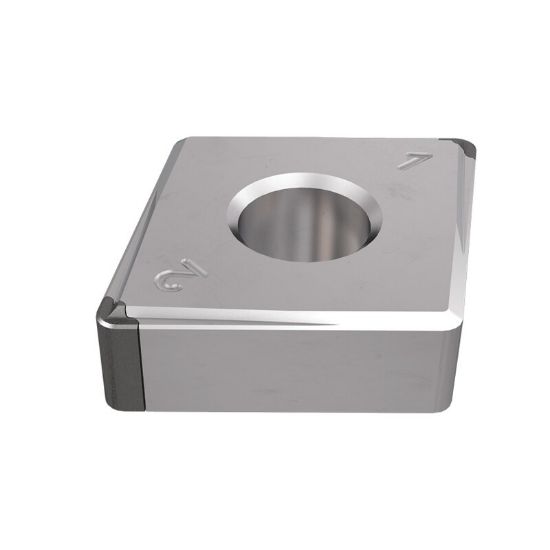

Picture of ISCAR CNGG432-M4HM-J IB22HC Turning Insert 80.0° CBN Coated 0.031 Corner Radius

ISCAR CNGG432-M4HM-J IB22HC Turning Insert 80.0° CBN Coated 0.031 Corner Radius

ANSI: CNGG432-M4HM-J IB22HC

ISO: CNGG120408-M4HM-J IB22HC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6769788
Delivery date: 3-5 days
$158.29

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

80° Rhombic Inserts with 4 Chipbreaking CBN Tips for Machining Hardened Steel

Grade and Coating Description

CBN inserts for machining hardened steel.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 10
Coating Coated
Insert Type Negative
Application Turning Insert
Grade IB22HC
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Corner Radius 0.0310 0.79MM
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat CBN
