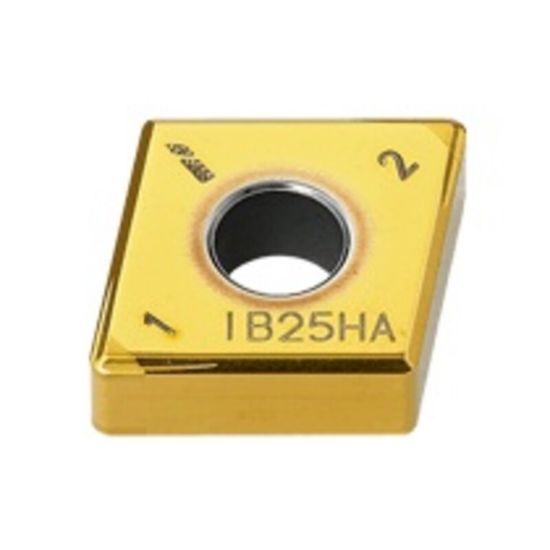

Picture of ISCAR CNGG432-M4HF IB25HA Turning Insert 80.0° CBN AlTiN 0.031 Corner Radius

ISCAR CNGG432-M4HF IB25HA Turning Insert 80.0° CBN AlTiN 0.031 Corner Radius

ANSI: CNGG432-M4HF IB25HA

ISO: CNGG120408-M4HF IB25HA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6859008
Delivery date: 3-5 days
$138.51

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

80° Rhombic Inserts with 4 Chipbreaking CBN Tips for Machining Hardened Steel

Grade and Coating Description

A tough PCBN grade with PVD coating suitable for general cutting of hardened steels.

Products specifications
Attribute name Attribute value
General Product Information
Coating AlTiN
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Insert
Grade IB25HA
Insert Type Negative
Application Turning Insert
Made In USA No
Package Size 10
Dimensional Specifications
Insert Size Ic 12 "43"
Corner Radius 0.0310 0.79MM
Cut Rating <65HRC Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat CBN
