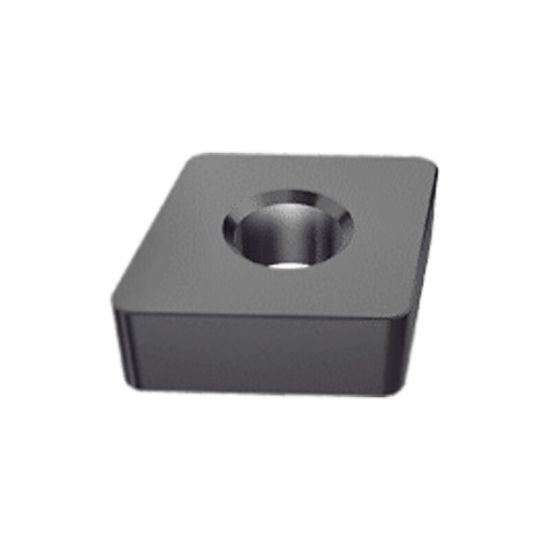

ANSI: CNGA432E IS9
ISO: CNGA120408-E IS9
Share This:
Ceramic Inserts are indexable inserts made from Aluminium Oxide Al2O3 or Silicon Nitride Si3N4. They have a hardness of 2,100-2,500 HV (About 40% above carbide), which enables them to machine Hard Steel up to 55 HRC. It can also machine cast iron and nickel-based alloys six times faster compared to coated carbide inserts. Wisker fiber available to get the best toughness.
80° Rhombic Double-Sided Inserts with a T-Land for Machining Cast Iron and Hardened Steel
A Si3N4 ceramic grade, recommended for high speedmachining and interrupted cut for nickel based, heat resistant alloys such as Inconel, Waspaloy andRene.
