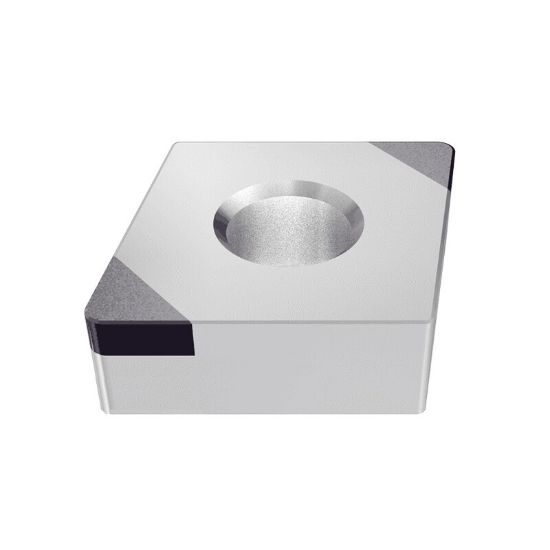

Picture of ISCAR CNGA432-S2 IB05S Turning Insert 80.0° CBN 0.031 Corner Radius

ISCAR CNGA432-S2 IB05S Turning Insert 80.0° CBN 0.031 Corner Radius

ANSI: CNGA432-S2 IB05S

ISO: CNGA120408-S2 IB05S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6852689
Delivery date: 3-5 days
$64.24

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

80° Rhombic Inserts with 2 CBN Tips for Machining Hardened Steel, Sintered Metals and High Temperature Alloys

Grade and Coating Description

A CBN grade for turning super alloys with heavy interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Grade IB05S
Application Turning Insert
Package Size 10
Insert/Tool Insert
Insert Type Negative
Made In USA No
Shipping State Texas
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating High Temp, Inconel
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Style CN
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 80.0°
