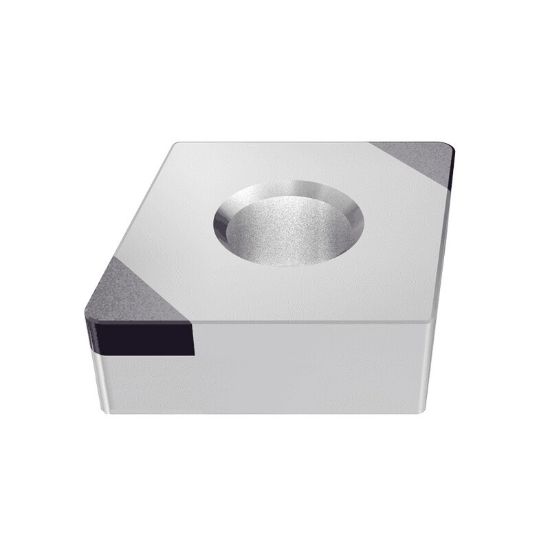

Picture of ISCAR CNGA432-MW2 IB20HC Turning Insert 80.0° CBN TiN 0.031 Corner Radius

ISCAR CNGA432-MW2 IB20HC Turning Insert 80.0° CBN TiN 0.031 Corner Radius

ANSI: CNGA432-MW2 IB20HC

ISO: CNGA120408-MW2 IB20HC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6805242
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

80° Rhombic Inserts with 2 CBN Tips for Machining Hardened Steel, Sintered Metals and High Temperature Alloys

Grade and Coating Description

Coated PCBN grade for hardened steel turning. High chipping resistance & extremely tough substrate for all-round use.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Insert
Coating TiN
Grade IB20HC
Package Size 10
Insert Type Negative
Application Turning Insert
Made In USA No
Dimensional Specifications
Insert Size Ic 12 "43"
Corner Radius 0.0310 0.79MM
Cut Rating <65HRC Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat CBN
