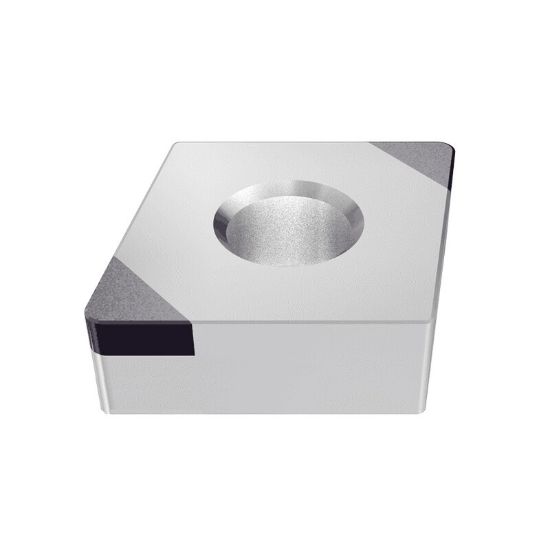

Picture of ISCAR CNGA432-MW2 IB10HC Turning Insert 80.0° CBN TiN 0.031 Corner Radius

ISCAR CNGA432-MW2 IB10HC Turning Insert 80.0° CBN TiN 0.031 Corner Radius

ANSI: CNGA432-MW2 IB10HC

ISO: CNGA120408-MW2 IB10HC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6864761
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

80° Rhombic Inserts with 2 CBN Tips for Machining Hardened Steel, Sintered Metals and High Temperature Alloys

Grade and Coating Description

Extra fine PCBN grain size with PVD coating. Suitable for high speed machining of hardened steels (45-65 HRC) under stable conditions.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 10
Coating TiN
Grade IB10HC
Insert Type Negative
Application Turning Insert
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Cut Rating <65HRC Steel
Corner Radius 0.0310 0.79MM
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat CBN
