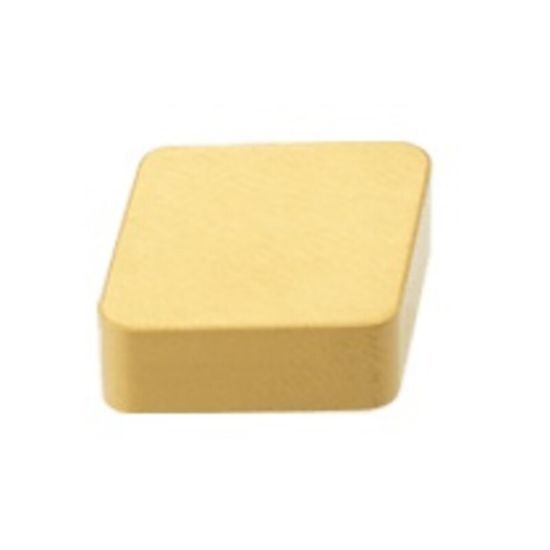

ISCAR CNG454T IW7 Turning Insert 80.0° Ceramic 0.063 Corner Radius

ANSI: CNG454T IW7

ISO: CNG120716-T IW7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5700737
Delivery date: 3-5 days
$33.04

Cutting Edge Definition

Ceramic Inserts are indexable inserts made from Aluminium Oxide Al2O3 or Silicon Nitride Si3N4. They have a hardness of 2,100-2,500 HV (About 40% above carbide), which enables them to machine Hard Steel up to 55 HRC. It can also machine cast iron and nickel-based alloys six times faster compared to coated carbide inserts. Wisker fiber available to get the best toughness.

Details

80° Rhombic Double-Sided Ceramic Inserts with a T-Land for Machining Cast Iron, Hardened Steel and Nickel Based Alloys

Grade and Coating Description

A whisker-reinforced ceramic grade for machining high temperature alloys and hardened steel at high cutting speeds.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert Application Roughing
Application Turning Insert
Package Size 10
Insert/Tool Insert
Shipping State Texas
Grade IW7
Dimensional Specifications
Cut Rating <55HRC Steel, High Temp
Insert Size Ic 12 "45"
Corner Radius 0.0630 1.60MM
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Ceramic
