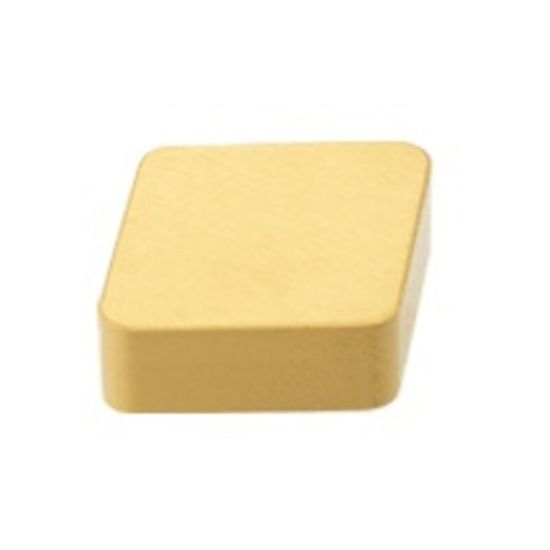

ISCAR CNG454T IS80 Turning Insert 80.0° Ceramic Al2O3 + TiN 0.063 Corner Radius

ANSI: CNG454T IS80

ISO: CNG120716-T IS80

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5700373
Delivery date: 3-5 days
$30.46

Cutting Edge Definition

Ceramic Inserts are indexable inserts made from Aluminium Oxide Al2O3 or Silicon Nitride Si3N4. They have a hardness of 2,100-2,500 HV (About 40% above carbide), which enables them to machine Hard Steel up to 55 HRC. It can also machine cast iron and nickel-based alloys six times faster compared to coated carbide inserts. Wisker fiber available to get the best toughness.

Details

80° Rhombic Double-Sided Ceramic Inserts with a T-Land for Machining Cast Iron, Hardened Steel and Nickel Based Alloys

Grade and Coating Description

CVD coated Si3N4 ceramic grade. Used for rough turning and milling of grey and nodular cast iron.

Products specifications
Attribute name Attribute value
General Product Information
Coating Al2O3 + TiN
Shipping State Texas
Application Turning Insert
Grade IS80
Package Size 10
Insert Type Negative
Insert Application Roughing
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Corner Radius 0.0630 1.60MM
Insert Size Ic 12 "45"
Cut Rating Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat Ceramic
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
