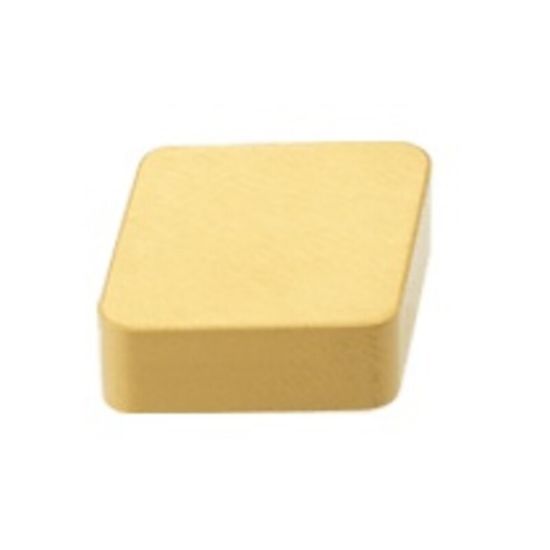

ISCAR CNG431T IW7 Turning Insert 80.0° Ceramic 0.016 Corner Radius

ANSI: CNG431T IW7

ISO: CNG120404-T IW7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5700732
Delivery date: 3-5 days
$28.80

Cutting Edge Definition

Ceramic Inserts are indexable inserts made from Aluminium Oxide Al2O3 or Silicon Nitride Si3N4. They have a hardness of 2,100-2,500 HV (About 40% above carbide), which enables them to machine Hard Steel up to 55 HRC. It can also machine cast iron and nickel-based alloys six times faster compared to coated carbide inserts. Wisker fiber available to get the best toughness.

Details

80° Rhombic Double-Sided Ceramic Inserts with a T-Land for Machining Cast Iron, Hardened Steel and Nickel Based Alloys

Grade and Coating Description

A whisker-reinforced ceramic grade for machining high temperature alloys and hardened steel at high cutting speeds.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Insert
Grade IW7
Insert Application Finishing
Package Size 10
Insert Type Negative
Made In USA No
Application Turning Insert
Dimensional Specifications
Insert Size Ic 12 "43"
Cut Rating <55HRC Steel, High Temp
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Ceramic
Insert Style CN
