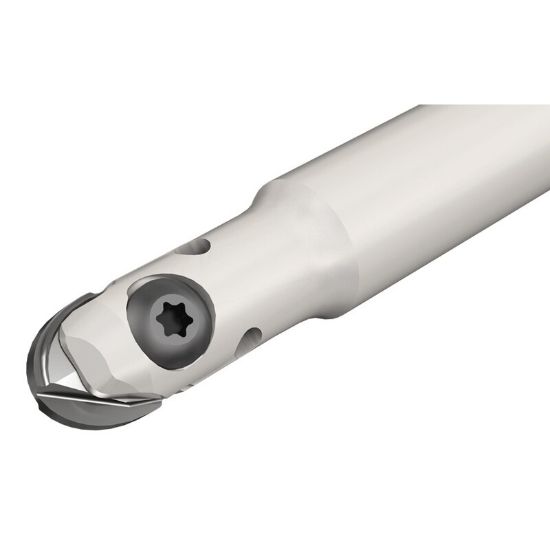

Picture of ISCAR CM D.75-B-W1.00 Milling Cutter 0.750 Diameter Weldon 1.000 8.000 OAL 2 Flute

ISCAR CM D.75-B-W1.00 Milling Cutter 0.750 Diameter Weldon 1.000 8.000 OAL 2 Flute

ANSI: CM D.75-B-W1.00

ISO: CM D.75-B-W1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181065
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Application Copy Milling, Profile Milling
Shipping State Texas
Insert Type Neutral
Package Size 1
Insert Application General Purpose
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.6300
Flutes/Inserts 2
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 0.7500 19.05MM - 3/4
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 8.0000 203.20MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Ball
Fasteners & Connectors
Insert Screw 7000219
