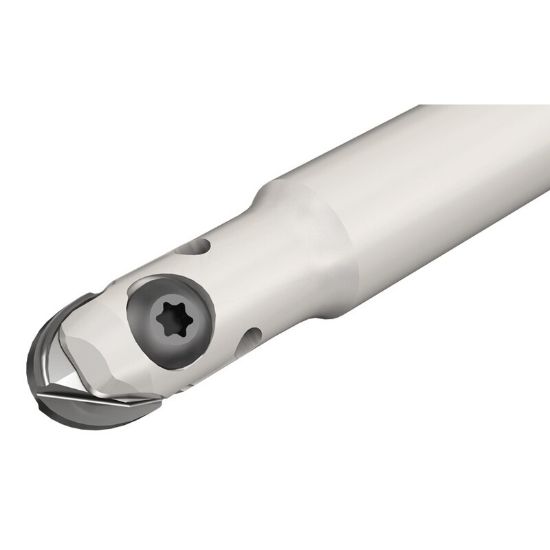

Picture of ISCAR CM D.75-A-W.75 Milling Cutter 0.750 Diameter Weldon 0.750 6.000 OAL 2 Flute

ISCAR CM D.75-A-W.75 Milling Cutter 0.750 Diameter Weldon 0.750 6.000 OAL 2 Flute

ANSI: CM D.75-A-W.75

ISO: CM D.75-A-W.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100709
Delivery date: 3-5 days
$298.56
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Application Profile Milling, Copy Milling
Insert Type Neutral
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 1.7000
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 6.0000 152.40MM
Machine Side Connection Type Weldon
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Ball
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000402
