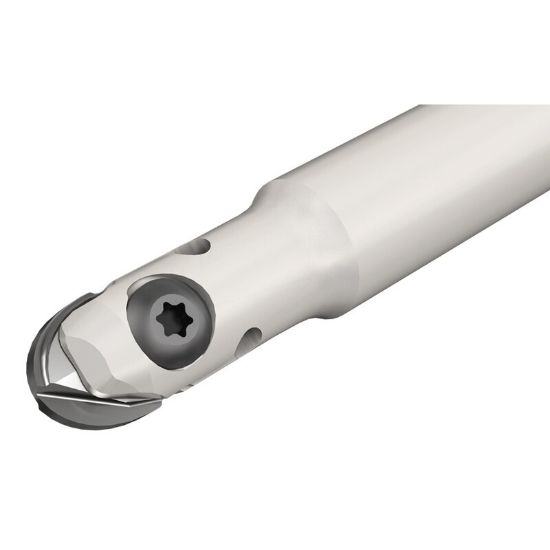

Picture of ISCAR CM D.62-B-W.75 Milling Cutter 0.625 Diameter Weldon 0.750 6.000 OAL 2 Flute

ISCAR CM D.62-B-W.75 Milling Cutter 0.625 Diameter Weldon 0.750 6.000 OAL 2 Flute

ANSI: CM D.62-B-W.75

ISO: CM D.62-B-W.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100611
Delivery date: 3-5 days
$305.28
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Application Copy Milling, Profile Milling
Shipping State Texas
Package Size 1
Insert Type Neutral
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 1.0300
Flutes/Inserts 2
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Ball
Fasteners & Connectors
Insert Screw 7000402
