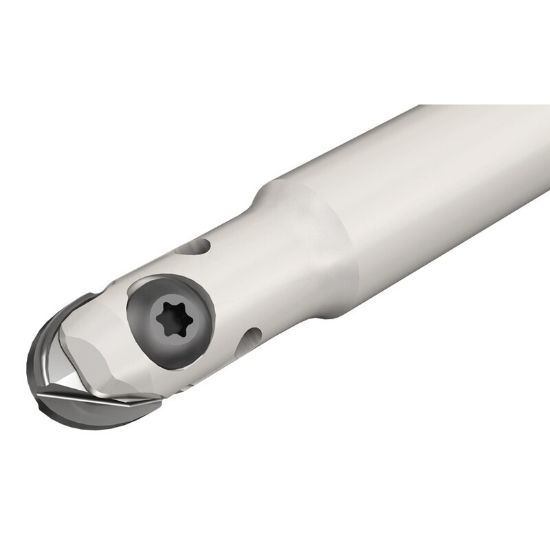

Picture of ISCAR CM D.31-A-W.50 Milling Cutter 0.315 Diameter Weldon 0.500 3.000 OAL 1 Flute

ISCAR CM D.31-A-W.50 Milling Cutter 0.315 Diameter Weldon 0.500 3.000 OAL 1 Flute

ANSI: CM D.31-A-W.50

ISO: CM D.31-A-W.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100589
Delivery date: 3-5 days
$166.08
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Neutral
Application Profile Milling, Copy Milling
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.1600
Overall Len 3.0000 76.20MM
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 1
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Dia Min 0.3150 8.00MM
Cut Dia Max 0.3150 8.00MM
Tool Material Steel
Insert Size Ic D1
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Coolant Thru No
Insert Style CR
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002441
