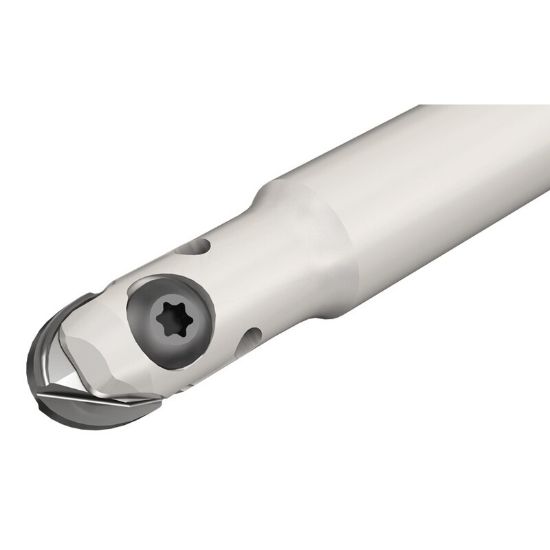

Picture of ISCAR CM D1.00-B-C1.25* Milling Cutter 1.000 Diameter Round 1.250 10.00 OAL 2 Flute

ISCAR CM D1.00-B-C1.25* Milling Cutter 1.000 Diameter Round 1.250 10.00 OAL 2 Flute

ANSI: CM D1.00-B-C1.25*

ISO: CM D1.00-B-C1.25*

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100844
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Neutral
Insert/Tool Tool
Application Profile Milling, Copy Milling
Package Size 1
Shipping State Texas
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.0000 25.40MM
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Weldon
Flutes/Inserts 2
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.7200
Cut Dia Max 1.0000 25.40MM
Overall Len 10.0000 254.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Ball
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7001960
