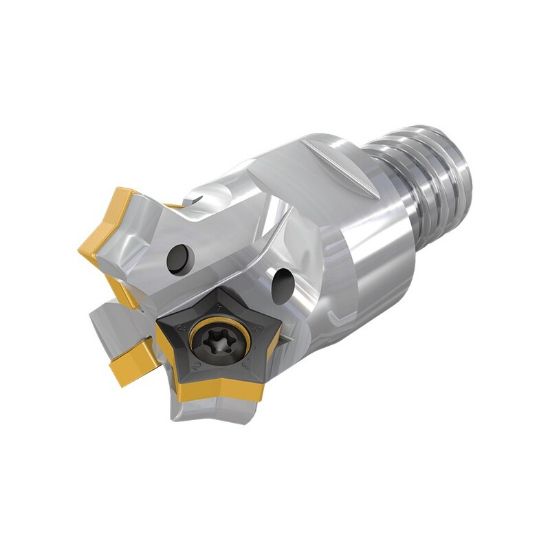

Picture of ISCAR CH45-19/.75-3-MMT10-PN06 Milling Cutter 45.0° 0.736 Diameter Screw On T10 1.232 OAL 3 Flute

ISCAR CH45-19/.75-3-MMT10-PN06 Milling Cutter 45.0° 0.736 Diameter Screw On T10 1.232 OAL 3 Flute

ANSI: CH45-19/.75-3-MMT10-PN06

ISO: CH45-19/.75-3-MMT10-PN06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3316315
Delivery date: 3-5 days
$286.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Chamfering, Back Chamfering
Package Size 1
Dimensional Specifications
Cutter Dia 0.7360 18.69MM
Overall Len 1.2320 31.29MM
Tool Material Steel
Insert Size Ic 6
Cut Dia Max 0.7360 18.69MM
Machine Side Connection Type Screw On
Flutes/Inserts 3
Depth Of Cut Max 0.4650
Cut Dia Min 0.5280 13.41MM
Machine Side Connection Size T10
Cutting & Machining Properties
Insert Style PN
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Pentagonal
Fasteners & Connectors
Insert Screw 7006977
