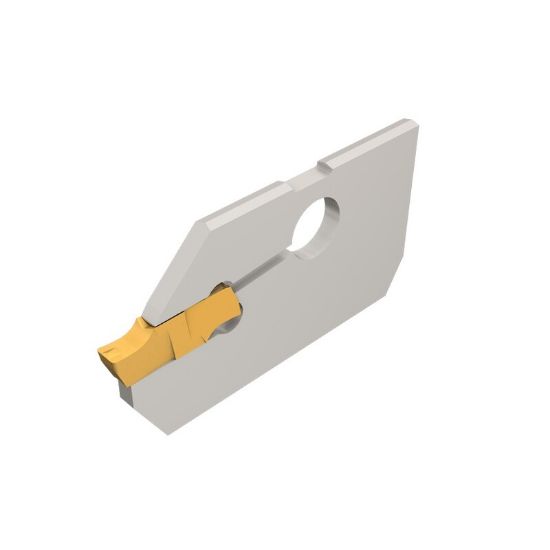

Picture of ISCAR CGIN 26K-3 Grooving,Groove Turning Adapter Blade 1.024 Tool

ISCAR CGIN 26K-3 Grooving,Groove Turning Adapter Blade 1.024 Tool

ANSI: CGIN 26K-3

ISO: CGIN 26K-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800584
Delivery date: 3-5 days
$96.96

Details

Internal, single-ended blades, for grooving and turning.

WFN-WFX and OHN-OHX are the blade's extension range Grooving depth (CDX) varies in conformance with blade's overhang (OHN-OHX) and depends on the bore diameter(D).For grooving capacity, see chart below When using TIPI inserts toolholder seat needs to be modified according to insert profile to ensure clearance

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Grooving
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Insert Type Positive
Package Size 1
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Insert Size Ic 3
Machine Side Connection Type Blade
Machine Side Connection Size 1.0240 26.01MM
Overall Len 1.7720 45.01MM
Cutting Width 0.1100 2.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI
