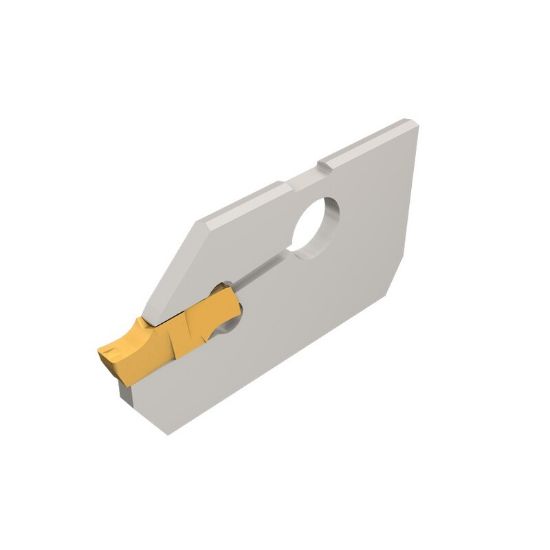

Picture of ISCAR CGIN 26A-5 Grooving,Groove Turning Adapter Blade 1.024 Tool

ISCAR CGIN 26A-5 Grooving,Groove Turning Adapter Blade 1.024 Tool

ANSI: CGIN 26A-5

ISO: CGIN 26A-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800589
Delivery date: 3-5 days
$96.96

Details

Internal, single-ended blades, for grooving and turning.

WFN-WFX and OHN-OHX are the blade's extension range Grooving depth (CDX) varies in conformance with blade's overhang (OHN-OHX) and depends on the bore diameter(D).For grooving capacity, see chart below When using TIPI inserts toolholder seat needs to be modified according to insert profile to ensure clearance

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Application Int.Grooving
Insert Type Positive
Insert Application General Purpose
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutting Width 0.1730 4.39MM
Machine Side Connection Size 1.0240 26.01MM
Overall Len 1.9490 49.50MM
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Type Blade
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GI
