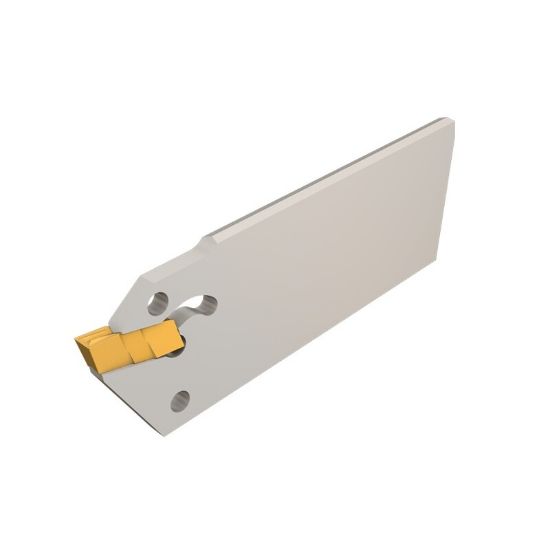

Picture of ISCAR CGHN 32-6DGM Cut Off,Grooving Blade 1.260 Tool

ISCAR CGHN 32-6DGM Cut Off,Grooving Blade 1.260 Tool

ANSI: CGHN 32-6DGM

ISO: CGHN 32-6DGM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800815
Delivery date: 3-5 days
$103.68

Details

Internal single-ended grooving and turning blades using self-clamped inserts.

Grooving depth (CDX) varies in conformance with blade's overhang (WFN-WFX and it depends on the bore diameter (D) For grooving capacity, click "More Info" CGHN 32...DGM can be modified from external double-sided CGHN-DG blades When TIP inserts are used, the seat needs to be modified to ensure clearance

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Cutting Width 0.2200 5.59MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Insert Size Ic 6
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Style GI,GI,GI,GI,GI
Extractor EDG 44A
Insert Shape/Cutter Pocket Shape Dog Bone
