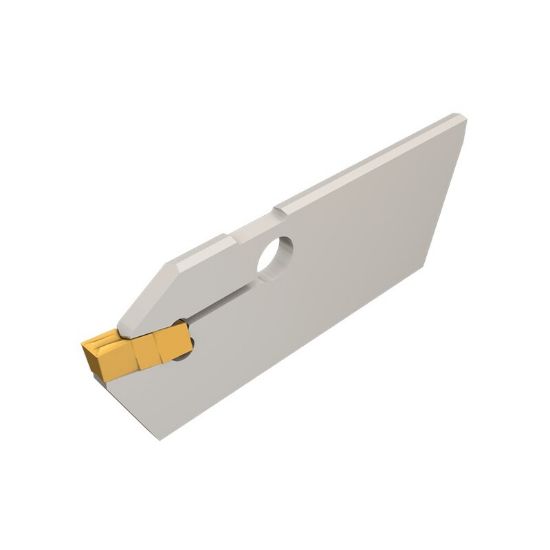

Picture of ISCAR CGHN 32-3M Cut Off,Grooving Blade 1.260 Tool

ISCAR CGHN 32-3M Cut Off,Grooving Blade 1.260 Tool

ANSI: CGHN 32-3M

ISO: CGHN 32-3M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800806
Delivery date: 3-5 days
$103.68

Details

Internal grooving and turning blades.

WFN-WFX and OHN-OHX are the blade's extension range Grooving depth (CDX) varies in conformance with blade's overhang (OHN-OHX) and depends on the bore diameter(D). For grooving capacity, click "More Info" When using TIP inserts,the toolholder seat needs to be modified

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Insert Size Ic 4, 3
Tool Material Steel
Overall Len 3.2280 81.99MM
Cutting Width 0.1100 2.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
